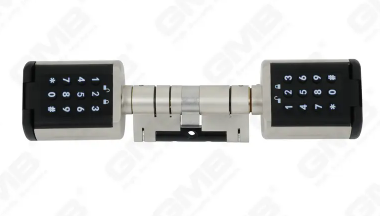

The 5F01 Series High-Security Smart Electronic Profile Cylinder combines multiple unlocking methods with IP66-rated water protection and a specified operating temperature range of -25°C to +65°C. Designed for flexible access management, it supports fingerprint, password, RFID card, and app unlocking.
| Specification |
Details |
| Test Standard |
EN 15684-2012 |
| Test Certification |
1 6 0 4 A F 0 2 |
| Quality Standards |
EN, SKG, CE, RoHS |
| Quality Guarantee |
2 years |
| Protection Rating |
IP66 water protection |
| Reading Range |
Less than 20 mm |
| Battery |
2 × CR2 lithium batteries |
| Battery Life |
Up to 25,000 operating cycles (approximately 2 years of use) |
| User Capacity |
Up to 1,000 RFID cards, 250 passwords, 100 fingerprints, and 100 app users |
| Unlocking Methods |
Fingerprint, password, RFID card, and app |
| Operating Temperature |
-25°C to +65°C |
| Additional Feature |
External power supply protection |
