Description

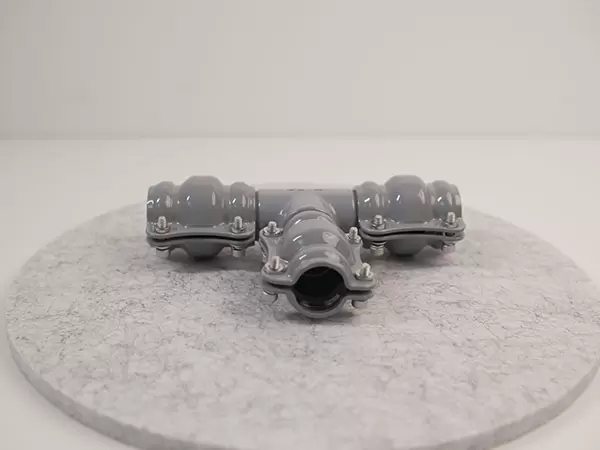

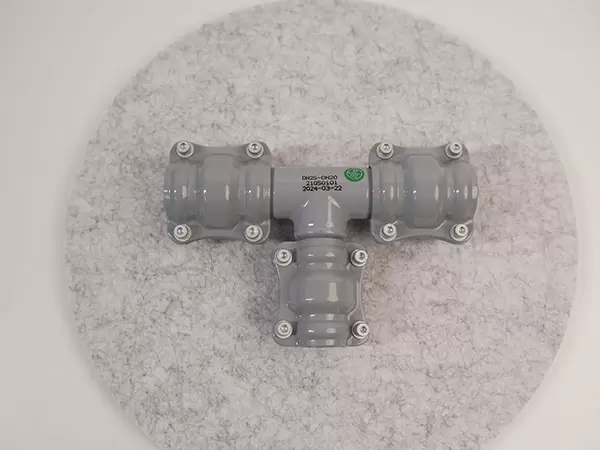

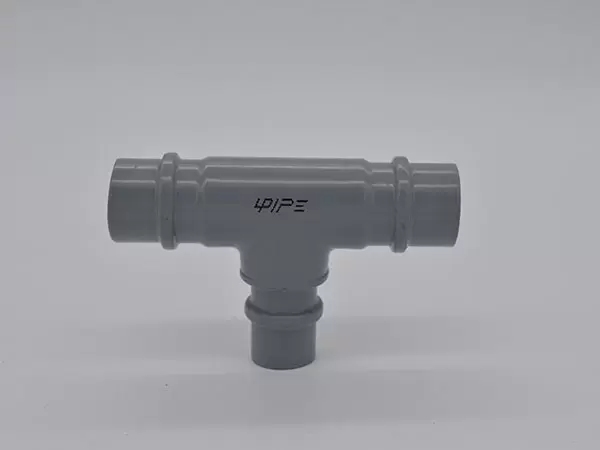

Reducing Tee
|
S.N |
Nominal Diameter(mm) |
W(mm) |
H(mm) |
|
21 0501 01 |
DN25-DN20(Assembled) |
157 |
105 |
|
21 0501 00 |
DN25-DN20 |
157 |
105 |
|
42 0501 00 |
DN40-DN25 |
148.2 |
83 |
|
54 0501 00 |
DN50-DN40 |
158 |
107 |
|
64 0501 00 |
DN65-DN40 |
175 |
137.6 |
|
65 0501 00 |
DN65-DN50 |
210 |
135.6 |
|
74 0501 00 |
DN80-DN40 |
175 |
156.2 |
|
75 0501 00 |
DN80-DN50 |
175 |
156.2 |
|
76 0501 00 |
DN80-DN65 |
230 |
161.2 |
|
84 0501 00 |
DN100-DN40 |
176 |
174.7 |
|
86 0501 00 |
DN100-DN65 |
215 |
181.7 |
|
87 0501 00 |
DN100-DN80 |
250 |
179.7 |
|
96 0501 00 |
DN125-DN65 |
217 |
204.8 |
|
97 0501 00 |
DN125-DN80 |
230 |
206.8 |
|
98 0501 00 |
DN125-DN100 |
274 |
203.3 |
|
C6 0501 00 |
DN148-DN65 |
240 |
232.4 |
|
C7 0501 00 |
DN148-DN80 |
260 |
232.4 |
|
C8 0501 00 |
DN148-DN100 |
280 |
232.4 |
|
C9 0501 00 |
DN148-DN125 |
320 |
237.9 |
|
B4 0501 00 |
DN200-DN40 |
200 |
286.3 |
|
B5 0501 00 |
DN200-DN50 |
220 |
293.3 |
|
B6 0501 00 |
DN200-DN65 |
220 |
293.3 |
|
B7 0501 00 |
DN200-DN80 |
235 |
293.3 |
|
B8 0501 00 |
DN200-DN100 |
250 |
293.3 |
|
B9 0501 00 |
DN200-DN125 |
280 |
293.3 |
|
BA 050100 |
DN200-DN148 |
330 |
296.6 |
