Self-Diagnostic Electromagnetic Flowmeters

Description

Multi-Language & Global Contact Header

Global Contact:
📞 WhatsApp: +86 15137867592
📧 Email: xinya@sytcflowmeter.com
📠 Fax: +86 371-23668496
🏢 Headquarters: No.1, Ba Qing Wu Road, Jinming Avenue, Kaifeng, Henan, China

Primary Navigation Menu

Product Catalog Hierarchy

Level 1: Electromagnetic Flowmeter Solutions

Level 2: Industrial Electromagnetic Flowmeters

SF-E Electromagnetic Flowmeter (DN15-DN3000)
- Integral Type Configuration
- Split Type Configuration
- High-Accuracy Models (±0.2%, ±0.3%, ±0.5%)

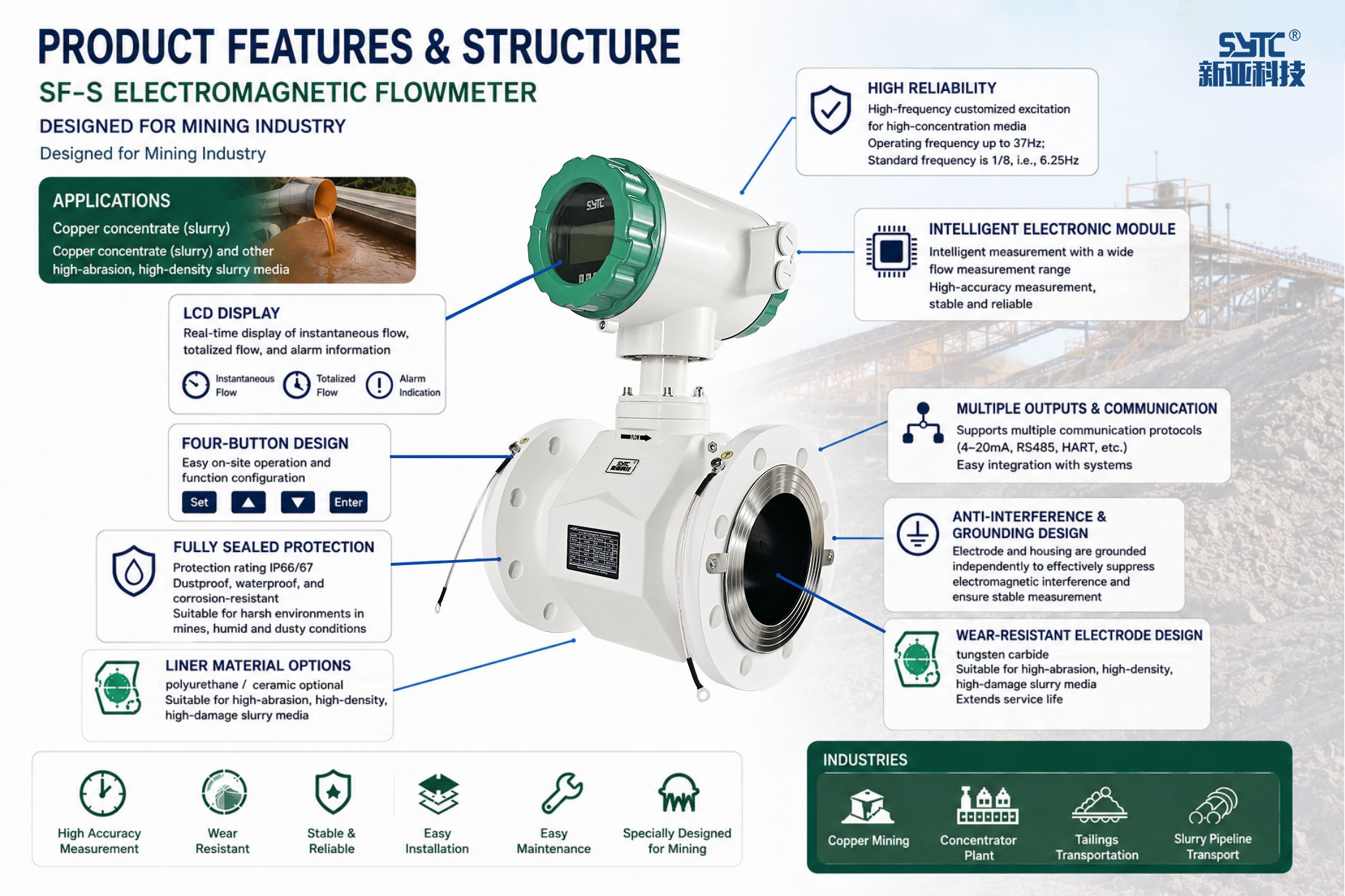

Slurry Electromagnetic Flowmeter
- Coal-Water Slurry Applications
- Mineral Tailings Measurement
- Pulp Industry Solutions
SF-C Insertion Electromagnetic Flowmeter
- Large Pipe Diameter Applications (DN300-DN3000)
- Ball Valve Installation Systems
- Half/Quarter Depth Configurations

Level 2: Specialty Application Flowmeters

Battery-Powered Electromagnetic Flowmeter
- Remote Monitoring Solutions
- GPRS Wireless Transmission
- IP68 Submersible Models
SF-W Food Safety Electromagnetic Flowmeter
- Hygienic Design Standards
- Food & Beverage Applications
- Pharmaceutical Industry Solutions
Heat Measurement Electromagnetic Flowmeter
- Enthalpy Calculation Systems
- Municipal Heating Networks
- CJ128-2007 Standard Compliance

Level 2: Communication & IoT Integration

GPRS Remote Flowmeters
RS485/RS232 Communication Models
HART Protocol Flowmeters
Bluetooth & WiFi Enabled Meters

Knowledge Hub

Technical Principles & Theory

What is Electromagnetic Flow Measurement?
Electromagnetic flowmeters operate on Faraday’s law of electromagnetic induction, measuring conductive liquids from 5 μS/cm conductivity. Kaifeng XinYa employs square wave pulse excitation technology combined with VFC (Voltage-to-Frequency Conversion) to achieve exceptional zero-point stability and measurement accuracy of ±0.2% to ±0.5%.

Self-Diagnostic Capabilities in Modern Flowmeters
Advanced self-diagnosis functions automatically detect:

Empty Pipe Conditions: Prevents erroneous readings when no liquid is present
Excitation Circuit Failures: Identifies coil breaks or power supply issues
Flow Range Overflows: Alerts when velocity exceeds 10 m/s maximum
Signal Anomalies: Monitors electrode impedance and signal quality

These alarm functions minimize downtime by enabling predictive maintenance rather than reactive repairs.

Device Monitoring Through IoT Big Data Platform
The integrated IoT platform (accessible at 124.95.128.250) provides:

Real-time flow trend visualization with 5-second default refresh rates
60-point historical curve tracking for operational transparency
120-month internal data logging for forward, reverse, and net flow accumulation
Multi-device centralized management with multi-level password protection (6 security grades)

Application Guides & Selection Criteria

How to Select the Right Electromagnetic Flowmeter

For Standard Industrial Applications:
Choose SF-E Electromagnetic Flowmeters when:

Pipe diameter ranges from DN15 to DN3000
Measurement accuracy of ±0.2%-±0.5% is required
Multiple signal outputs needed (4-20mA, pulse, frequency)
Bidirectional flow measurement is necessary

For Slurry & High-Solids Content:
Select Slurry Electromagnetic Flowmeters when:

Measuring coal-water slurry, mineral tailings, or pulp
Abrasive environments require wear-resistant linings (Polyurethane, PFA, Ceramics)
Signal stability is critical despite solid grain friction
Variation restraint algorithms are needed to suppress "cuspidal disturb"

For Remote or Power-Limited Locations:
Opt for Battery-Powered Flowmeters when:

Installation sites lack electrical infrastructure
IP68 submersible operation is required (up to 3 meters underwater)
GPRS wireless data transmission is preferred
Long-term autonomous operation is essential

For Large-Diameter Municipal Pipes:
Use SF-C Insertion Flowmeters when:

Pipe diameters exceed DN300
Cost-effective measurement is prioritized
Installation without flow interruption is required
Ball valve mounting systems are acceptable

For Hygienic Industries:
Implement SF-W Food Safety Flowmeters when:

Food, beverage, or pharmaceutical applications demand sanitary design
Preventing bacterial growth and contamination is critical
Compliance with food safety standards is mandatory

Comparison Content

Electromagnetic Flowmeter vs. Ultrasonic Flowmeter

Integral Type vs. Split Type Electromagnetic Flowmeters

Integral Type:

Sensor and converter housed together
Compact installation footprint
Suitable for non-hazardous, accessible locations
Lower installation cost

Split Type:

Sensor and converter separated (up to 100m cable)
Converter can be mounted in control rooms
Ideal for hazardous, submerged, or high-temperature environments
Enhanced signal stability through isolated installation

Installation & Operational Best Practices

Pre-Installation Inspection Checklist

Verify pipe nominal diameter matches flowmeter DN size
Confirm flange standard compliance (GB/T 9124.1-2019)
Check liquid conductivity (minimum 5 μS/cm)
Ensure straight pipe requirements: 5D upstream, 2D downstream (D = pipe diameter)
Verify grounding electrode installation for non-conductive pipes

Commissioning Procedure

Allow 10-minute preheating period after power-on
Verify excitation current stability
Confirm empty pipe alarm functions correctly
Test bidirectional flow measurement accuracy
Configure communication protocols (MODBUS-RTU/RS485)
Set up IoT platform connection if cloud monitoring is required

Predictive Maintenance Guidelines

Self-Diagnostic Alarm Monitoring:

Empty Pipe Alarm (EI): Indicates no liquid present or electrode contamination → Clean electrodes or check process conditions
Excitation Alarm (EX): Signals coil circuit failure → Inspect excitation coil continuity and connections
Flow Overflow Alarm: Velocity exceeds 10 m/s → Verify pipe sizing or adjust measurement range
Signal Quality Alerts: Low signal amplitude → Check electrode condition and liquid conductivity

Routine Device Monitoring Tasks:

Weekly: Review flow trend curves for abnormal patterns
Monthly: Verify zero-point stability during no-flow periods
Quarterly: Inspect electrode and lining condition for wear
Annually: Perform factory-calibrated circuit board verification

Predictive Maintenance Benefits:
By leveraging self-diagnostic alarm functions and continuous device monitoring through the IoT platform, enterprises can transition from reactive repairs to predictive maintenance strategies, reducing downtime by up to 40% and extending equipment lifespan.

Industry-Specific Use Cases

Municipal Water Distribution
Challenge: Accurate billing measurement across diverse pipe sizes with remote monitoring capabilities.
Solution: Deployed battery-powered electromagnetic flowmeters with GPRS transmission, achieving 120-month historical data retention and IP68-rated submersible installation for underground vaults.

Coal-Water Slurry Transport
Challenge: Severe electrode wear and signal instability from solid grain friction.
Solution: Implemented slurry electromagnetic flowmeters with polyurethane linings and variation restraint algorithms, maintaining ±0.5% accuracy despite 40% solid content.

Food & Beverage Processing
Challenge: Preventing bacterial contamination while measuring viscous liquids like fruit pulp.
Solution: Installed SF-W food safety electromagnetic flowmeters with sanitary design, enabling CIP (Clean-In-Place) compatibility and FDA-compliant materials.

Pharmaceutical Manufacturing
Challenge: High-purity water monitoring with full traceability and alarm functions.
Solution: Integrated SF-E flowmeters with HART protocol communication, providing real-time self-diagnostics and integration with DCS systems for GMP compliance.

Mining Tailings Management
Challenge: Measuring abrasive mineral slurries in remote processing facilities.
Solution: Deployed ceramic-lined slurry flowmeters with battery power and wireless transmission, achieving multi-year service life in high-wear environments.

About Us

Company Profile

Kaifeng XinYa Instrument Co., Ltd. is a specialized industrial instrumentation and IoT solutions provider dedicated to high-stability electromagnetic flow measurement systems integrated with cloud-based big data platforms. Headquartered in Kaifeng, Henan, China, we serve global industrial markets requiring high-precision fluid measurement and IoT monitoring solutions.

Strategic Positioning

We address critical industry pain points:

Signal stability challenges in abrasive environments
High power consumption in remote areas without electrical grids
Difficulty integrating field data with cloud-based management systems

Our solution: Advanced electromagnetic flowmeters utilizing square wave pulse excitation and VFC technology, delivering zero-point stability across diverse conductive media with comprehensive IoT integration.

Industry Certifications & Compliance

JB/T 9248-2015: Electromagnetic Flowmeter execution standard compliance
GB/T 9124.1-2019: Steel Pipe Flanges standard compliance
IP68 Ingress Protection: Highest rating for sensor units (submersible up to 3 meters)
IP65/IP66/IP67: Converter unit protection ratings
CJ128-2007: Heat measurement calculation standard compliance
MODBUS-RTU: International protocol standard for industrial communication

Development Milestones

August 2023: Released SF-W Food Safety Electromagnetic Flowmeter manual (2nd edition), emphasizing hygienic standards
August 2024: Published SF-E Electromagnetic Flowmeter and Battery-Powered series manuals, introducing optimized low-power electronics
April 2026: Scheduled release of advanced Slurry Electromagnetic Flowmeter documentation focusing on high-abrasion resistance

Manufacturing Capabilities

Proprietary R&D: Variable frequency, bidirectional constant current drive systems for excitation coils
Advanced Manufacturing: Surface Mount Technology (SMT) for circuit board reliability
Customization Capacity: Pipe diameters from DN15 to DN3000 with custom lining and electrode material selection
Quality Control: Factory calibration ensuring ±0.2% accuracy with zero accuracy loss in replacement circuit boards

Contact & Inquiry

Global Headquarters

Kaifeng XinYa Instrument Co., Ltd.
Address: No.1, Ba Qing Wu Road, Jinming Avenue, South Section, Kaifeng Demonstration Area, Henan, China

Direct Contact Channels

📞 WhatsApp: +86 15137867592
📧 Email: xinya@sytcflowmeter.com
📠 Fax: +86 371-23668496

IoT Platform Access

🌐 Web-Based Management Platform: http://124.95.128.250
Access real-time device monitoring, historical data analytics, and multi-device centralized management.

Inquiry Form

For technical consultations, product quotations, or partnership inquiries, please provide:

Application details (liquid type, pipe diameter, flow range)
Installation environment (temperature, pressure, power availability)
Communication requirements (RS485, GPRS, HART, etc.)
Accuracy and certification needs

IoT Big Data Platform

Platform Overview

The Instrument IoT Big Data Platform provides centralized device management and real-time data analytics for all connected electromagnetic flowmeters, enabling enterprises to optimize resource allocation and enhance operational transparency.

Core Features

Real-Time Monitoring

5-second default data refresh rate
Simultaneous monitoring of multiple measurement points
Instant alarm notifications for device anomalies

Historical Data Analytics

60-point trend curve tracking
120-month cumulative flow data retention
Forward, reverse, and net flow accumulation reports

Device Management

Multi-level password protection (6 security grades)
Remote parameter configuration
Firmware update distribution

Data Integration

RESTful API support via HTTP GET/POST requests
JSON data format for third-party system integration
MODBUS-RTU protocol compatibility for SCADA systems

Connectivity Options

GPRS Wireless: For remote installations without wired infrastructure
RS485/RS232: Industrial standard wired communication
HART Protocol: Integration with existing DCS/PLC systems
Bluetooth: Short-range configuration and diagnostics
WiFi (STA/AP): Local network integration or direct mobile access

Security & Compliance

Multi-tier user authentication
Encrypted data transmission
Role-based access control
Audit trail logging for regulatory compliance

Footer Sitemap

Products

SF-E Electromagnetic Flowmeter
Battery-Powered Flowmeter
Slurry Electromagnetic Flowmeter
SF-C Insertion Flowmeter
SF-W Food Safety Flowmeter
Heat Measurement Flowmeter

Knowledge Hub

Technical Principles
Self-Diagnostic Systems
Predictive Maintenance Guide
Application Selection Criteria
Installation Best Practices
Industry Use Cases

Company

About Us
Certifications & Compliance
Development History
Manufacturing Capabilities

Support

Contact Us
Technical Inquiry
IoT Platform Access
Product Documentation

Legal

Terms of Service
Privacy Policy
Warranty Information

SEO Metadata Structure

Homepage

Title: Electromagnetic Flowmeter Manufacturer | Self-Diagnostic IoT Solutions – Kaifeng XinYa
Meta Description: Industrial electromagnetic flowmeters with self-diagnostic alarm functions, predictive maintenance capabilities, and IoT device monitoring. DN15-DN3000, ±0.2% accuracy, IP68 rated.
Keywords: electromagnetic flowmeter, self diagnostic flowmeter, alarm functions, device monitoring, predictive maintenance, IoT flowmeter, slurry flowmeter

Product Category Page

URL Structure: /products/electromagnetic-flowmeters/self-diagnostic-models/
Schema Markup: Product, BreadcrumbList, Organization
H1: Self-Diagnostic Electromagnetic Flowmeters
H2: Automatic Alarm Functions for Predictive Maintenance
H3: Device Monitoring Capabilities | IoT Integration Options

Knowledge Article

URL Structure: /knowledge/self-diagnostic-flowmeter-alarm-functions/
Schema Markup: Article, HowTo
H1: Understanding Self-Diagnostic Alarm Functions in Electromagnetic Flowmeters
H2: Types of Automatic Alarms | Predictive Maintenance Benefits
H3: Empty Pipe Detection | Excitation Circuit Monitoring | Signal Quality Alerts

Internal Linking Strategy

Product Pages → Knowledge Articles:

SF-E Flowmeter page links to "Self-Diagnostic Capabilities in Modern Flowmeters"
Battery-Powered Flowmeter page links to "Remote Device Monitoring Best Practices"
Slurry Flowmeter page links to "Alarm Functions for Abrasive Environments"

Knowledge Articles → Product Pages:

"Predictive Maintenance Guide" links to relevant flowmeter models with self-diagnostic features
"Application Selection Criteria" links to specific product configurations

Cross-Product Recommendations:

SF-E page suggests Battery-Powered model for remote applications
Food Safety page recommends Insertion type for large hygienic pipelines

Breadcrumb Navigation:
Home → Products → Electromagnetic Flowmeters → Self-Diagnostic Models → SF-E Flowmeter

Conversion Pathways

Primary Call-to-Action Locations

Header: "Request Technical Consultation" button
Product pages: "Get Custom Quote" form
Knowledge articles: "Speak with Application Engineer" link
Footer: "Start IoT Platform Trial" registration

Trust Signals

Certification badges (JB/T 9248-2015, IP68, GB/T 9124.1)
Multi-language support indicator
Global contact information
IoT platform live demo access
Technical documentation download library

This navigation structure optimizes for both traditional search queries ("electromagnetic flowmeter with alarm functions") and AI-driven retrieval questions ("What self-diagnostic capabilities do modern flowmeters have?"), while maintaining strict accuracy to the provided enterprise knowledge base and establishing clear pathways for user engagement and conversion.
