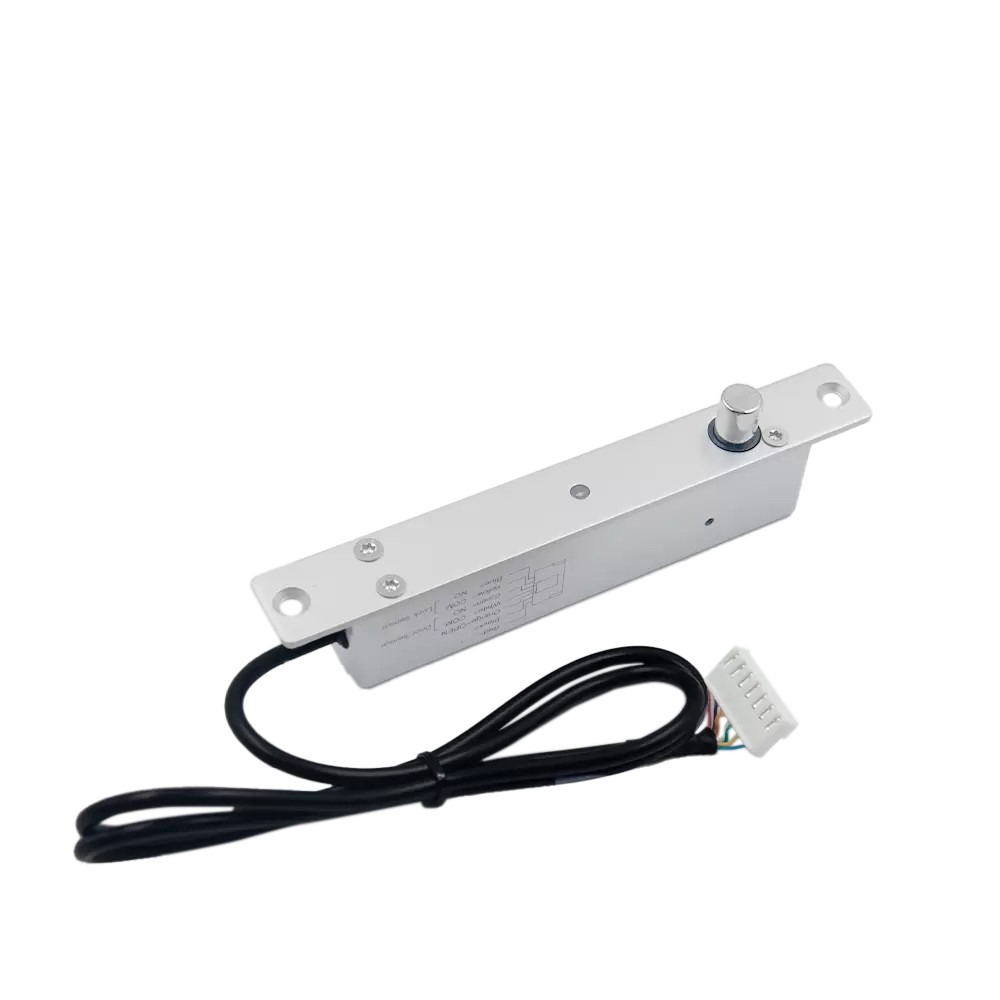

DZ636-E Electronic Lock

Description

https://www.shengjiuglobal.com/electronic-lock/DZ636-E.html

Unlocking Methods:  Power-on Unlocking, Emergency Unlocking

Main Materials:Lock Body:  Q235, Electrophoretic Black

Technical Parameters: Lock Bearing Capacity: ≥600N Load Unlocking: ≥200N Working Voltage: DC4.0-5.5V Working Current: ≤0.5A Neutral Salt Spray: 48h Operating Temperature: -20~70℃ Executive Mechanism: Electric Machinery

Interface Definition:  Type: XH2.54-2Y Red Wire: VCC Black Wire: GND Yellow Wire: Status Output Wire GreenWire: Status Output Wire

Notes:  The two status wires are open-circuited when the lock is unlocked, and short-circuited when the lock is locked
