Description

Product Overview

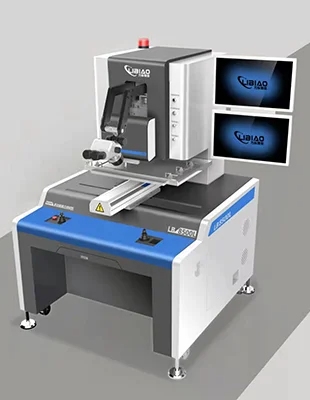

The LB-8500 Multi-function Automatic Bond is a high-precision automated testing and bonding equipment designed for multi-station measurement applications. The system combines automatic positioning, independent sensor data acquisition, precision motion control, and intelligent data management to improve testing efficiency and measurement reliability.

With advanced sensing technology and automated operation capability, the LB-8500 provides stable performance for industrial applications requiring high accuracy, repeatability, and efficient testing processes.

Basic Information

Model:
LB-8500

Minimum Order Quantity (MOQ):
1 set

Payment Terms:
T/T

Machine Footprint:
L: 1500mm × W: 1200mm × H: 1650mm

Delivery Time:
Standard products can be delivered within 40 days.
Customized products may require additional production time.

Transport Package:
Export-standard wooden case packaging

Customized Service:
Customization options available:

Equipment color
Customer logo
Test fixtures
Functional modules
Other application-specific requirements

HS Code:
44031644Q9

International Certification:
ISO9001

Service & Support

Complete Service Process

Provide one-stop support covering the entire customer experience:

Pre-sales consultation
Technical communication
Installation assistance
Operation training
After-sales support

Ensuring convenient operation and reliable equipment usage.

Technical Support

Online technical support and professional consultation services are available.

Sample Testing

Free sample testing is available for product evaluation before purchase.

After-Sales Service

1-year warranty period
Spare parts replacement support
Repair and maintenance service

Production Capacity

200 PCS/Year

Equipment Features

Automatic Multi-Station Testing System

The LB-8500 automatically moves to the designated testing position after the operator selects the required test station through the software interface.

The automated positioning process improves testing efficiency while reducing manual operation errors.

Independent Sensor Data Acquisition

The equipment integrates three independent testing sensors with dedicated data acquisition systems.

Key advantages:

Independent measurement data collection
Improved testing accuracy
Reliable test result analysis

Integrated Safety Protection System

Each sensor is equipped with:

Anti-collision protection
Overload protection

Each testing station includes:

Independent safety limit control
Speed limit protection

These functions improve equipment safety and protect both the machine and test samples.

High-Precision Testing Capability

The system combines precision sensors with optimized mechanical algorithms to provide accurate and repeatable measurement results.

Features include:

Dynamic high-precision sensing technology
Real-time data accuracy control
Stable measurement performance

Reliable Transmission and Motion Components

Imported precision transmission components are applied to enhance:

Machine stability
Positioning accuracy
Long-term operating reliability

User-Friendly Operating Interface

The intuitive software interface simplifies daily operation and allows operators to complete testing procedures efficiently.

Automatic Rotation Protection Function

The three-position automatic rotation switching system helps prevent equipment damage caused by incorrect operator operation.

Hall-Effect Dual Joystick Control

The Hall-effect dual joystick four-way control system provides:

Smooth operation
Accurate adjustment
Convenient manual positioning

MES System Integration

The LB-8500 supports integration with factory MES systems.

Testing information can be:

Recorded automatically
Stored in real time
Exported for production analysis

This improves manufacturing traceability and production management efficiency.

Technical Specifications

General Specifications

Item	Specification
Model	LB-8500
External Dimensions	1500mm × 1200mm × 1650mm
Weight	Approx. 800KG
Power Supply	110V/220V; 5.0A; 50/60Hz
Pneumatic Supply	4.5–6 Bar
Control Computer	Intel / Windows 10 PC
Operating System	Windows 10 / Windows 11

Optional Configuration

The system supports optional configurations including:

Trinocular microscope
CCD high-definition camera

Test Mode

Automatic Measurement Mode

After the test item is positioned, the system automatically responds to sensor feedback and performs the measurement process.

Motion System Parameters

XY Axis Performance

Effective Travel:
500mm × 300mm

Maximum Test Load:
100KG

Moving Speed:
Maximum 10mm/s

Motion Structure:
Precision XY table with independent control

Repeatability Accuracy:

Repeatability: ±5μm
Movement accuracy: ≤0.125mm
Precision: ≤2μm

Z Axis Performance

Effective Travel:
100mm

Maximum Test Load:
20KG

Vertical Moving Speed:
Maximum 8mm/s

Repeatability Accuracy:

Repeatability: ±2μm
Travel accuracy: ±1μm

Testing Performance

Test Accuracy

Testing capability: 0.003%
Accuracy per tested component: ±0.025%

The high-precision sensing system ensures reliable and consistent testing results.

Calibration & Quality Assurance

Calibration Requirement

Regular calibration is required to maintain measurement accuracy.

The equipment is supplied with a standard calibration kit.

Warranty Coverage

The LB-8500 includes:

1-year warranty
Hardware support
Software upgrade support

Warranty does not cover:

Damage caused by improper operation
Human-related equipment damage

Product Application Advantages

The LB-8500 Multi-function Automatic Bond is designed for industrial applications requiring:

Automated precision testing
Multi-position measurement
High repeatability
Real-time test data management
Stable long-term operation

By combining automatic control technology, precision measurement systems, and intelligent factory integration, the LB-8500 provides a reliable solution for advanced industrial testing and quality inspection requirements.
