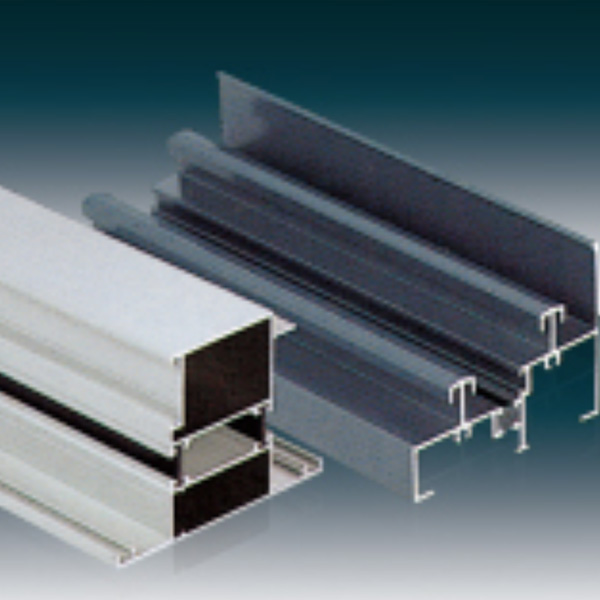

Heat Isulating Aluminum Section Materials

Description

Technical Specifications

• Standard Compliance: Manufactured in accordance with GB5237.4-2008 national standard.

• Surface Finish Options:
  Available finishes include anodized treatment, electrolytic coating, powder coating, PVDF coating, and wood-grain (timber texture) surface effect.

• Mechanical Performance:
  Longitudinal shear resistance value is not less than 24 N/mm, ensuring stable structural performance under load.

• Product Characteristics:
  Designed with integrated thermal insulation system. The structure supports energy-efficient applications and improved building performance.

• Thermal Performance:
  When paired with the corresponding insulating glass configuration, the overall thermal transmittance can achieve ≤ 2.7 W/m²·K. (Refer to the heat insulation technical brochure for detailed system configurations.)

• Environmental Feature:
  Produced with environmentally responsible materials and processes, suitable for green building applications.
