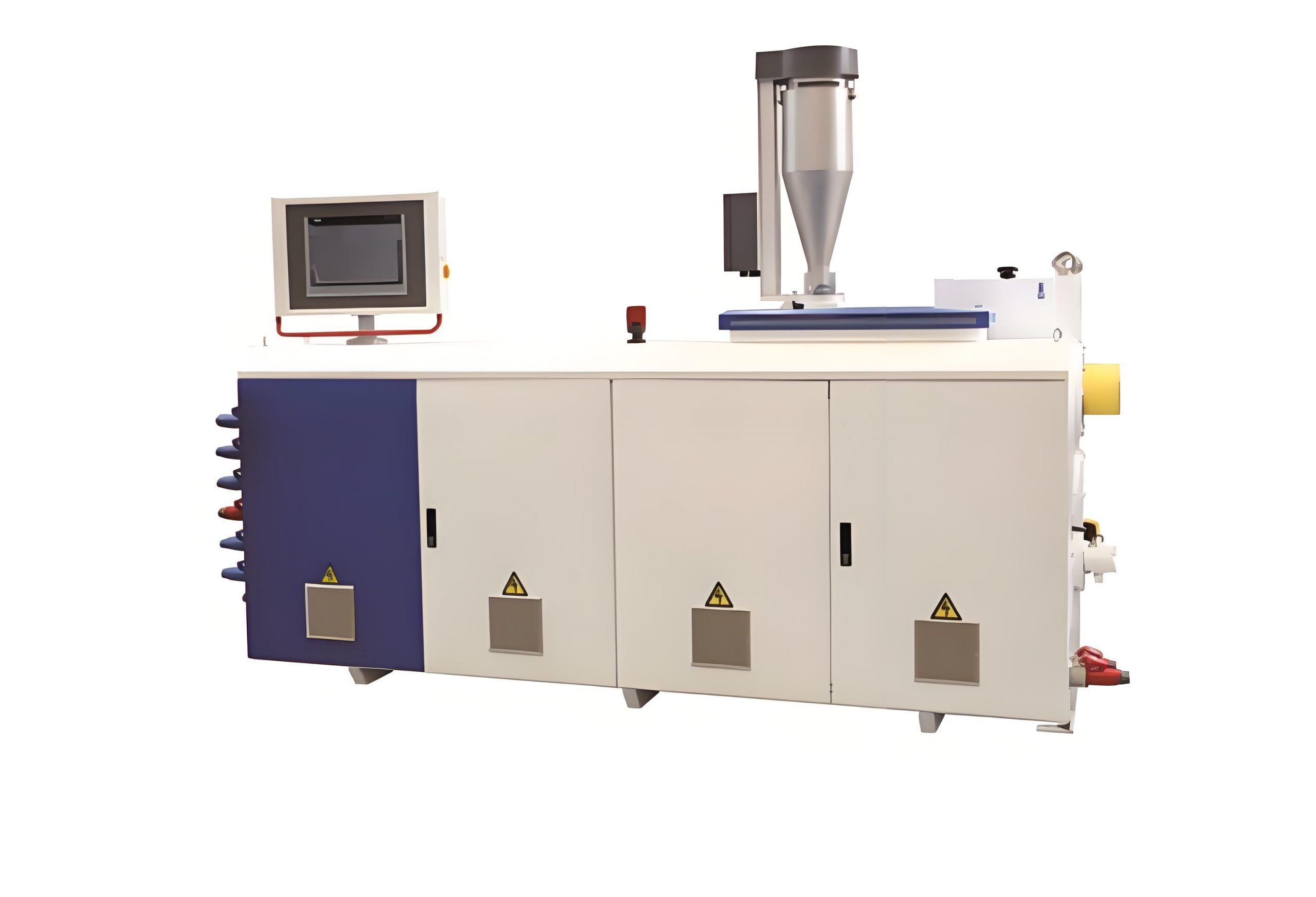

The XD series new high-efficiency single screw plastic extruder developed by
our company has introduced the latest technology from Germany. The screw adopts
an optimized combination of separated screw and mixing element, and the barrel
adopts an optimized design of groove machine simplification and extended feeding
section. By combining the use of separated screws and grooved barrels, the
following advantages can be obtained: the melting process of the material is
optimized, thereby increasing the extrusion yield.
Realized extrusion of material melt at lower temperatures.
By determining the shear action within the isolation gap, the material
achieved good homogenization.
The melt plasticization process is controlled, which means that only
particles smaller than the isolation gap can enter the melt channel. Provides a
wide processing range for different materials, suitable for various polyolefin
raw materials, especially for HDPE, PP, ABS pipe raw materials
|
Model |
Screw diameter |
L/D ratio |
Drive power |
Speed |
Output (kg/h) |
|
SJ45/33 |
45 |
33:1 |
22 |
120 |
100 |
|
SJ60/38 |
60 |
38:1 |
110 |
100 |
450 |
|
SJ65/33 |
65 |
33:1 |
55 |
120 |
200 |
|
SJ75/33 |
75 |
33:1 |
90 |
100 |
300 |
|
SJ75/38 |
75 |
38:1 |
160 |
90 |
600 |
|
SJ90/33 |
90 |
33:1 |
160 |
90 |
600 |
|
SJ90/38 |
90 |
38:1 |
250 |
80 |
950 |
|
SJ120/33 |
120 |
33:1 |
280 |
80 |
950 |
|
SJ120/38 |
120 |
38:1 |
400 |
80 |
1300 |
|
SJ150/33 |
150 |
33:1 |
450 |
80 |
1350 |
