Description

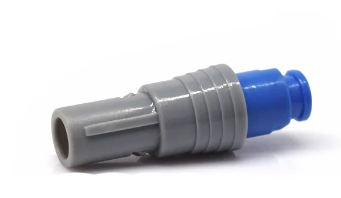

P0 Plastic Series Connectors: Compact and Reliable Connector Solutions for Medical and Electronic Applications

In modern electronic systems, connectors are essential components for ensuring stable power and signal transmission. Applications such as medical equipment, laboratory instruments, and testing devices require connectors with reliable electrical performance, compact design, and consistent connection capability.

P0 Plastic Series Connectors are designed to provide practical connection solutions for applications requiring lightweight construction, stable performance, and reliable operation.

As part of aerospace wire harness solutions, these connectors are developed to meet the electrical and mechanical requirements of professional electronic systems while also supporting various industrial applications.

Reliable Electrical Performance for Electronic Systems

Stable electrical performance is important for connectors used in precision equipment.

The P0 Plastic Series Connectors feature:

• Working voltage: 0.2 ~ 0.45KV

• Working current: 2 ~ 10A

• Contact resistance: ≤10mΩ

• Insulation resistance: >10⁸Ω

These characteristics help support consistent electrical connections in different equipment environments.

Compact Plastic Design for Flexible Integration

The lightweight plastic structure makes the P0 Series suitable for applications where compact size and efficient installation are required.

With a 10MM panel cut-out design, the connectors can be integrated into various equipment layouts while maintaining convenient installation requirements.

Available pin configurations include:

• 2 pins

• 3 pins

• 4 pins

• 5 pins

• 6 pins

• 7 pins

• 9 pins

The multiple pin options provide flexibility for different wiring system designs.

Stable Connection Performance and Service Life

Connector reliability depends not only on electrical performance but also on mechanical connection stability.

The P0 Plastic Series Connectors provide:

• Service life of more than 1000 times

• Average internal pulling force: 30N

• Average external pulling force: 6N

• Average insertion force: 6N

These characteristics help maintain stable connection performance during repeated use.

Designed for Different Operating Environments

Electronic equipment may operate under different temperature and humidity conditions.

The P0 Plastic Series Connectors support:

• Working temperature: -40°C to +120°C

• Working humidity: 60°C, 95% Max

• Protection grade: IP50

These specifications allow the connectors to support reliable operation in various professional equipment applications.

Applications of P0 Plastic Series Connectors

Due to their compact design and reliable connection performance, P0 Plastic Series Connectors are suitable for applications including:

Medical Equipment

Medical devices require dependable electrical connections to support stable operation and accurate performance.

The P0 Series provides a practical connector option for medical equipment systems where compact design and reliability are important.

Laboratory Instruments

Laboratory instruments often require connectors with stable electrical characteristics and consistent performance.

The P0 Plastic Series supports connection requirements in professional testing and research environments.

Testing and Measurement Devices

Testing and measurement systems require reliable connections to maintain signal and operational stability.

The P0 Series can be applied in electronic devices where repeatable connection performance is needed.

Product Specifications

Reliable Connector Solutions for Professional Equipment

P0 Plastic Series Connectors provide a balance of compact structure, reliable electrical performance, and practical installation for medical equipment, laboratory instruments, and testing applications.

With stable connection characteristics and flexible pin configurations, these connectors offer a reliable solution for electronic systems requiring consistent performance and efficient integration.
