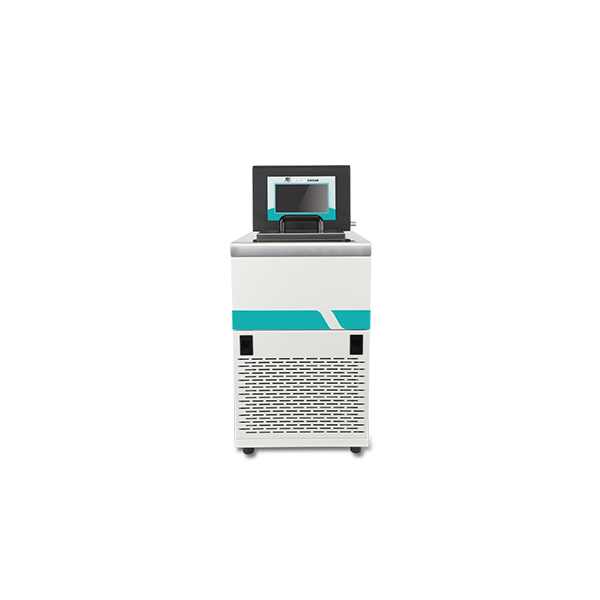

Recirculating water bath
The SCIENTZ-DC Series low-temperature thermostatic bath adopts an advanced fluorine-free refrigeration system, and all major components are imported, ensuring stable and reliable performance. The instrument features multiple superior functions such as timing, automatic start, and precision. It is widely used in research departments, universities, and enterprise quality control and production departments in fields such as petroleum, chemical engineering, physics, chemistry, bioengineering, medicine and health, life sciences, physical property testing, and chemical analysis. It provides users with a controlled, uniform, and constant temperature liquid environment for conducting constant temperature tests or assessments on experimental samples or manufactured products.
Description
Recirculating water bath
▌Features
|
· Low noise: closed imported compressor (SiKop), low noise of refrigeration system
· Environmental protection: The system uses environmentally friendly refrigerants
· Clear: 7-inch touch screen, bevel design, display temperature, time and other parameters, clearly visible in the distance
· Timing: The device automatically stops running after reaching
the set time
|
· Self-start: The parameters remain unchanged after power failure, and the customer can set the power-on state to self- start and standby
· Precision: Temperature fluctuation ±0.1℃
· Wide range: internal and external circulation can be switched, pump flow rate can be adjusted, suitable for a variety of different needs of the experiment
· Safety: The refrigeration compressor has automatic protection functions such as overheating and overload
|
▌Pump pressure flow curve
▌Applications
Rotary evaporation condenser
Non-contact ultrasound Temperature control of crusher
Chemical reaction Temperature control
Biological experiment Biological sample
Electronic component Semiconductor inspection
▌Technical Parameter
|
Model
|
Temp Range (℃)
|
Top
opening
size(mm²)
|
Tank size (mm³)
|
Volume
(L)
|
Temp
Stability
(℃ )
|
Pump
flow
(L/Min)
|
Pump
pressure
（bar）
|
Rated cooling
capacity
(25℃ /kW)
|
Heating
power
(kW)
|
Total
power (kW/h)
|
Dimensions
L/W/H(mm)
|
|
SDC-6
|
-5~100
|
180*140
|
260*200*140
|
6
|
±0.1
|
0~15
|
0.45
|
0.42
|
1.0
|
1.3
|
390*340*652
|
|
DC-1006
|
-10~100
|
180*140
|
260*200*140
|
6
|
±0.1
|
0~15
|
0.45
|
0.32
|
1.0
|
1.3
|
390*340*652
|
|
DC-2006
|
-20~100
|
180*140
|
260*200*140
|
6
|
±0.1
|
0~15
|
0.45
|
0.42
|
1.0
|
1.4
|
390*340*652
|
|
DC-3006
|
-30~100
|
180*140
|
260*200*140
|
6
|
±0.1
|
0~15
|
0.45
|
0.42
|
1.0
|
1.6
|
455*388*845
|
|
DC-4006
|
-40~100
|
180*140
|
260*200*140
|
6
|
±0.1
|
0~15
|
0.45
|
0.48
|
1.0
|
1.9
|
455*388*845
|
|
DC-0510
|
-5~100
|
180*140
|
260*200*200
|
10
|
±0.1
|
0~15
|
0.45
|
0.52
|
1.0
|
1.3
|
395*336*715
|
|
DC-1010
|
-10~100
|
180*140
|
260*200*200
|
10
|
±0.1
|
0~15
|
0.45
|
0.42
|
1.0
|
1.3
|
395*336*715
|
|
DC-2010
|
-20~100
|
180*140
|
260*200*200
|
10
|
±0.1
|
0~15
|
0.45
|
0.62
|
1.0
|
1.5
|
395*336*715
|
|
DC-3010
|
-30~100
|
180*140
|
260*200*200
|
10
|
±0.1
|
0~15
|
<td style="border-color: rgb(221, 221, 221); padding: 5px
