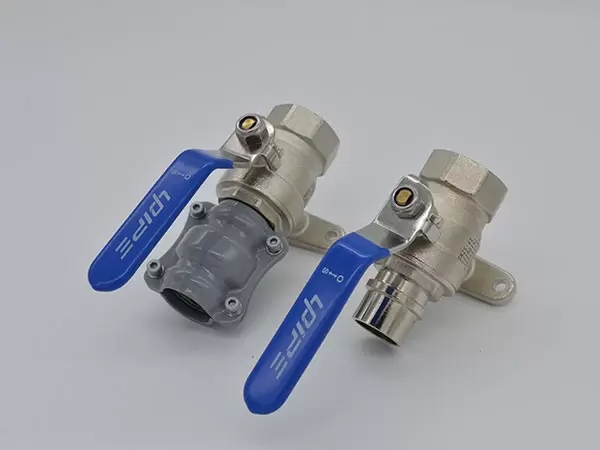

Single Side Plug Female Ball Valve

Description

The Single Side Plug Female Ball Valve is a precision-engineered flow control component designed for reliable shut-off and regulation in compressed air, vacuum, and inert gas pipeline systems. Featuring a single-side plug structure with female threaded connection, it ensures secure installation, stable sealing, and efficient fluid control in industrial applications.

Product Overview

The Single Side Plug Female Ball Valve is developed for industrial piping systems requiring flexible connection and dependable flow control performance. Its female-threaded inlet/outlet design allows easy integration with standard pipeline components, while the internal plug ball structure ensures stable and leak-free operation.

It is widely used in compressed air systems, vacuum pipelines, and inert gas transport including helium, nitrogen, and argon, making it suitable for diverse industrial environments.

Key Features

Single-side plug design with female threaded connection
Compatible with compressed air, vacuum, and inert gas systems
Working pressure up to 16 bar
Temperature resistance range: -20°C to +80°C / -60°C to +180°C
Stable sealing performance and reliable flow control
Corrosion-resistant and wear-resistant structure
Easy installation and maintenance-friendly design

Material Construction

Sprayed aluminum alloy body for lightweight durability
Stainless steel internal components for corrosion resistance and strength
Engineering plastics for sealing stability and long service life

These materials ensure excellent mechanical performance, durability, and stable operation under demanding industrial conditions.

Product Parameters

S.N	Nominal Diameter (mm)	W (mm)	H (mm)
1V 1001 41	DN20-G1/2" (Assembled)	120	87
2V 1001 41	DN25-G1/2" (Assembled)	123	87
22 1001 41	DN25-G1" (Assembled)	140	95
1V 1001 40	DN20-G1/2"	120	87
2V 1001 40	DN25-G1/2"	123	87
22 1001 40	DN25-G1"	140	95
44 1001 40	DN40-G1 1/2"	193	108
55 1001 40	DN50-G2"	194	118
66 1001 40	DN65-G2 1/2"	190	153

Application Fields

The Single Side Plug Female Ball Valve is widely used in:

Industrial compressed air pipeline systems
Vacuum transport and control systems
Inert gas distribution systems (nitrogen, argon, helium)
Manufacturing automation equipment
Energy and process engineering systems
Modular fluid transport pipelines

Company Introduction

Suzhou Jieyou Fluid Technology Co., Ltd., founded in August 2019, is a professional manufacturer specializing in the R&D, production, sales, and installation of advanced fluid transport systems.

The company’s core products include UPIPE aluminum alloy piping systems and Liq-pipe solutions, known for safety, corrosion resistance, environmental performance, and long-term reliability.

With strong engineering capability and multiple patents, the company has obtained ISO 9001, ISO 14001, CE, and high-tech enterprise certifications. Its products are exported worldwide, serving industrial, civil, and military sectors.

System Advantages

Safe and reliable flow control performance
Fast installation and convenient maintenance
Energy-efficient system design
Strong anti-corrosion capability
Clean and environmentally friendly operation

Ten-Year Quality Assurance

UPIPE series products are covered by a 10-year quality guarantee, ensuring free replacement or repair after proper installation, testing, and acceptance.

Warranty Exclusions Include (but are not limited to):

Expired warranty period without extension agreement
Damage caused by improper installation or misuse
Operation outside specified environmental conditions
Failure to follow installation or maintenance manuals
Corrosion, external impact, or incorrect handling
Unauthorized modification or system alteration

Summary

The Single Side Plug Female Ball Valve provides a reliable and efficient solution for industrial fluid and gas control systems requiring stable sealing and flexible threaded connection. With durable materials, precise engineering, and long service life, it ensures safe and consistent performance in compressed air, vacuum, and inert gas applications.
